An NGAGE Bioactive Implant Technology™ nail system for alignment and stabilization of bone fractures, osteotomies, and arthrodeses.

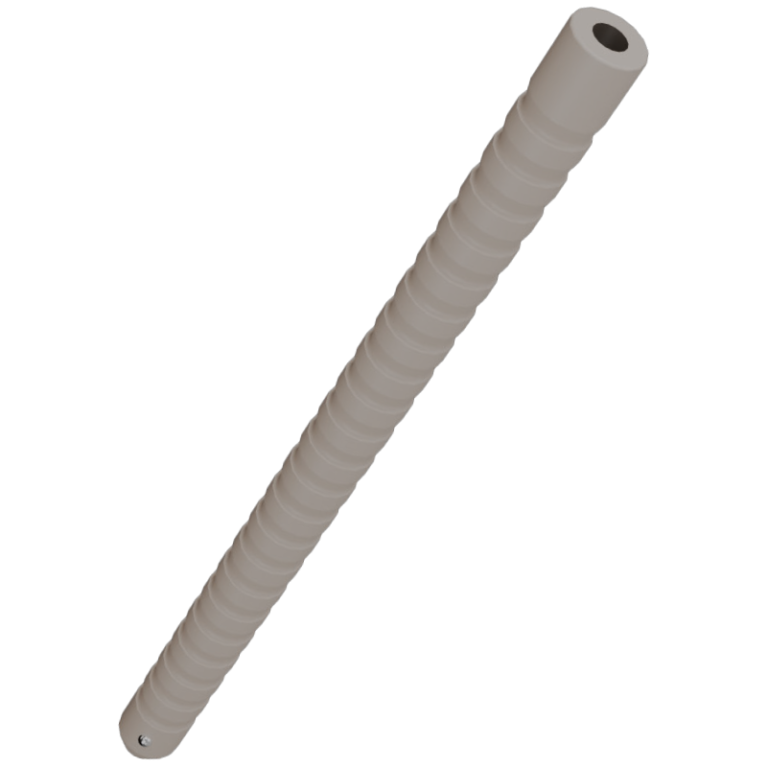

The Impact Fusion Nail System is an advanced non-metal fixation solution designed to optimize alignment and stabilization of bone fractures, osteotomies, and arthrodeses.
The implants are made from a compound of PEEK and hydroxyapatite to promote osteoconduction. The nails are cannulated for precise K-wire guidance and include a tantalum bead at the distal tip as a depth marker on imaging.
The system includes multiple diameters and lengths. Each nail is trimmable; a measured cut guide supports trimming before implantation, and the source states that a nail may also be trimmed after implantation.
The source identifies a compound of 80% PEEK and 20% hydroxyapatite.
Cannulation supports precise K-wire guidance.
A tantalum bead at the distal tip serves as a depth marker on imaging.
| Part number | Description |
|---|---|
| Implants | |
| PP-30-50 | Impact Fusion Nail 3.0mm Diameter x 50mm Long |
| PP-40-50 | Impact Fusion Nail 4.0mm Diameter x 50mm Long |
| PP-40-70 | Impact Fusion Nail 4.0mm Diameter x 70mm Long |
| PP-50-100 | Impact Fusion Nail 5.0mm Diameter x 100mm Long |
| PP-60-100 | Impact Fusion Nail 6.0mm Diameter x 100mm Long |
| Part number | Description |
|---|---|
| Instruments | |
| PP-1001T-300 | PEEK Nail 3.0mm Diameter Inserter |
| PP-1001T-400 | PEEK Nail 4.0mm Diameter Inserter |
| PP-1001T-500 | PEEK Nail 5.0mm Diameter Inserter |
| PP-1001T-600 | PEEK Nail 6.0mm Diameter Inserter |
| PP-1000T-300 | PEEK Nail Cannulated 3.0mm Diameter Drill |
| PP-1000T-400 | PEEK Nail Cannulated 4.0mm Diameter Drill |
| PP-1000T-500 | PEEK Nail Cannulated 5.0mm Diameter Drill |
| PP-1000T-600 | PEEK Nail Cannulated 6.0mm Diameter Drill |
| PP-1000T-301 | PEEK Nail 3.0mm Drill Guide |
| PP-1000T-401 | PEEK Nail 4.0mm Drill Guide |
| PP-1000T-561 | PEEK Nail 5.0/6.0mm Drill Guide |
| PP-1000T-032 | PEEK Nail 3.0mm Countersink Shaft |
| PP-1000T-042 | PEEK Nail 4.0mm Countersink Shaft |
| PP-1000T-052 | PEEK Nail 5.0mm Countersink Shaft |
| PP-1000T-062 | PEEK Nail 6.0mm Countersink Shaft |
| PP-1001T-CUT3 | PEEK Nail Cutter 3.0mm Diameter |
| PP-1001T-CUT4 | PEEK Nail Cutter 4.0mm Diameter |
| PP-1001T-CUT5 | PEEK Nail Cutter 5.0mm Diameter |
| PP-1001T-CUT6 | PEEK Nail Cutter 6.0mm Diameter |
| PP-1000T-200 | 2.0mm Extraction Drill |
| PP-1000T-250 | 2.5mm Extraction Drill |
| PP-1000T-SLAP | PEEK Nail Removal Hammer |
| PP-1000T-DEP34 | K-Wire Depth Gauge 3mm and 4mm Diameter Nails |
| PP-1000T-DEP56 | K-Wire Depth Gauge 5mm and 6mm Diameter Nails |
| KWIRE-14-127S | K-Wire 1.4mm x 127mm Diameter Single Trocar |
| KWIRE-16-152S | K-Wire 1.6mm x 152mm Diameter Single Trocar |
| INST-1000T-M250 | Mallet |
